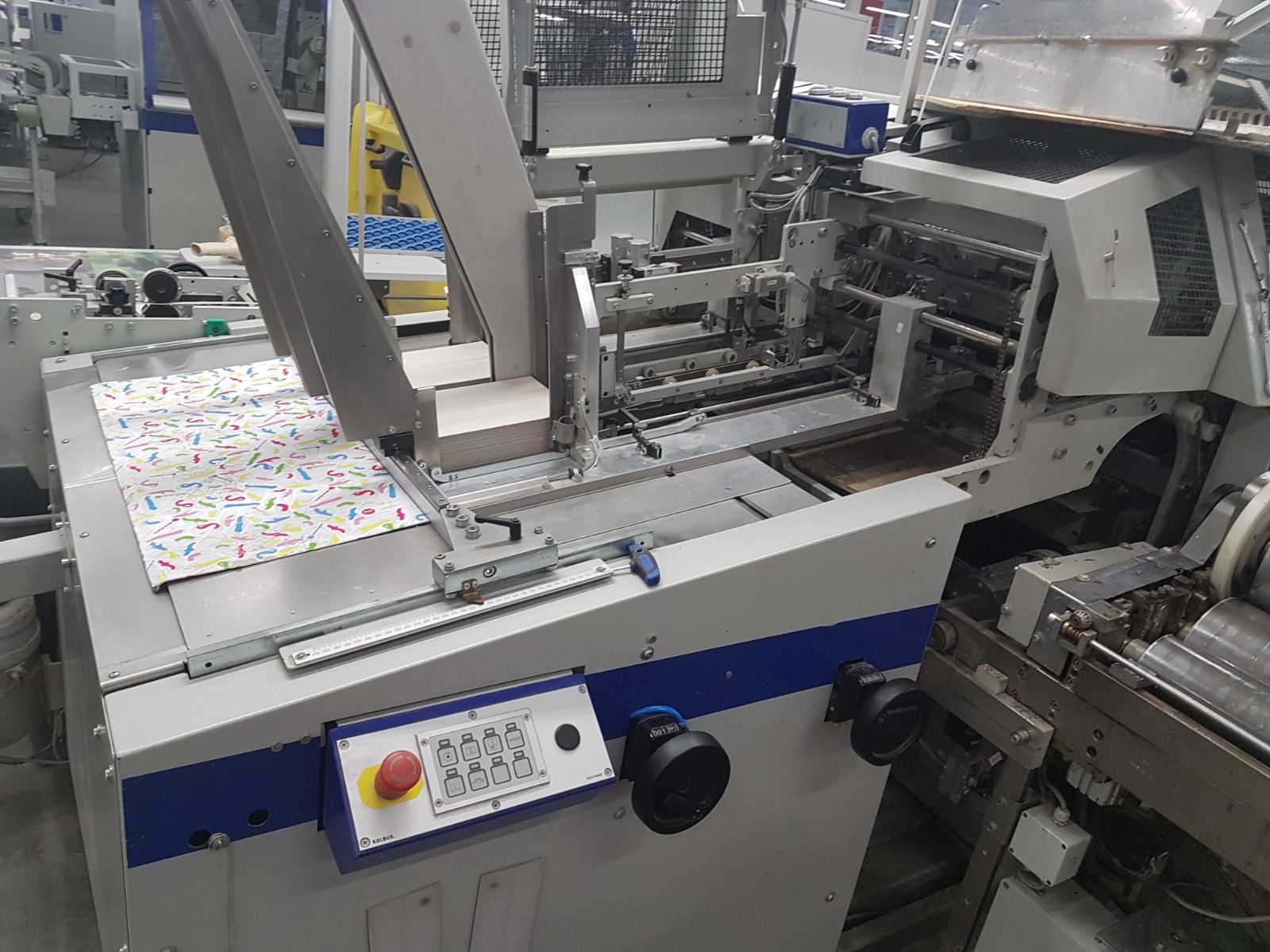

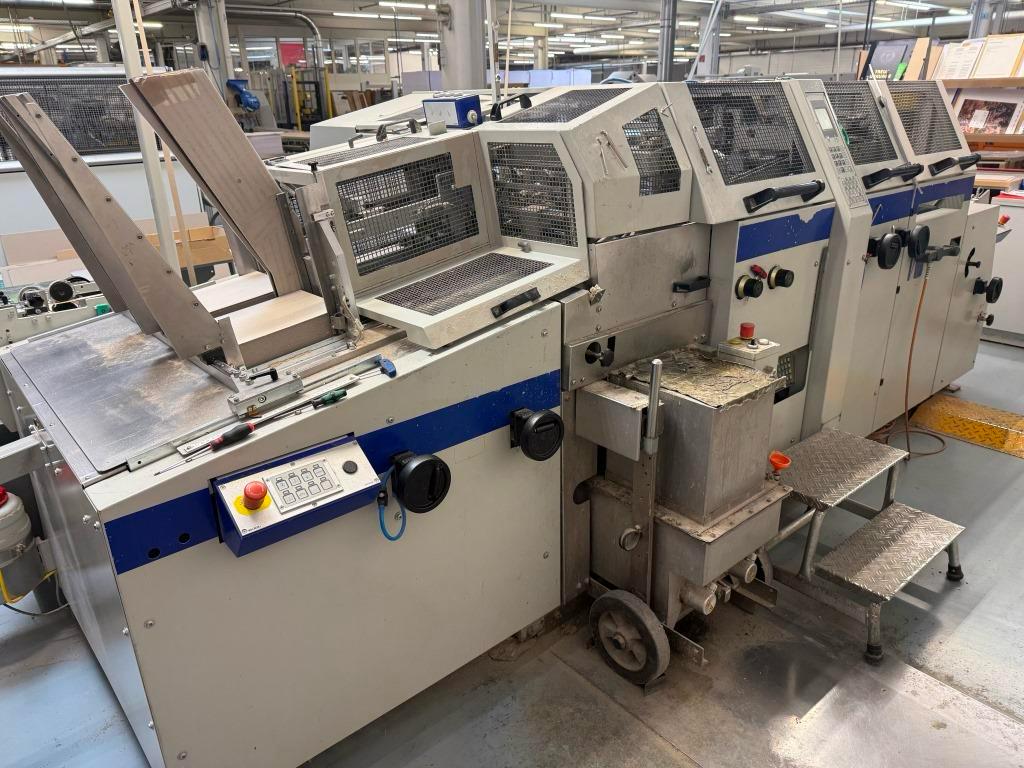

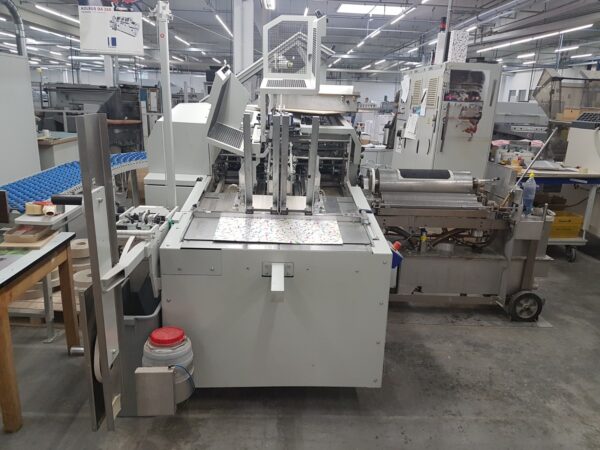

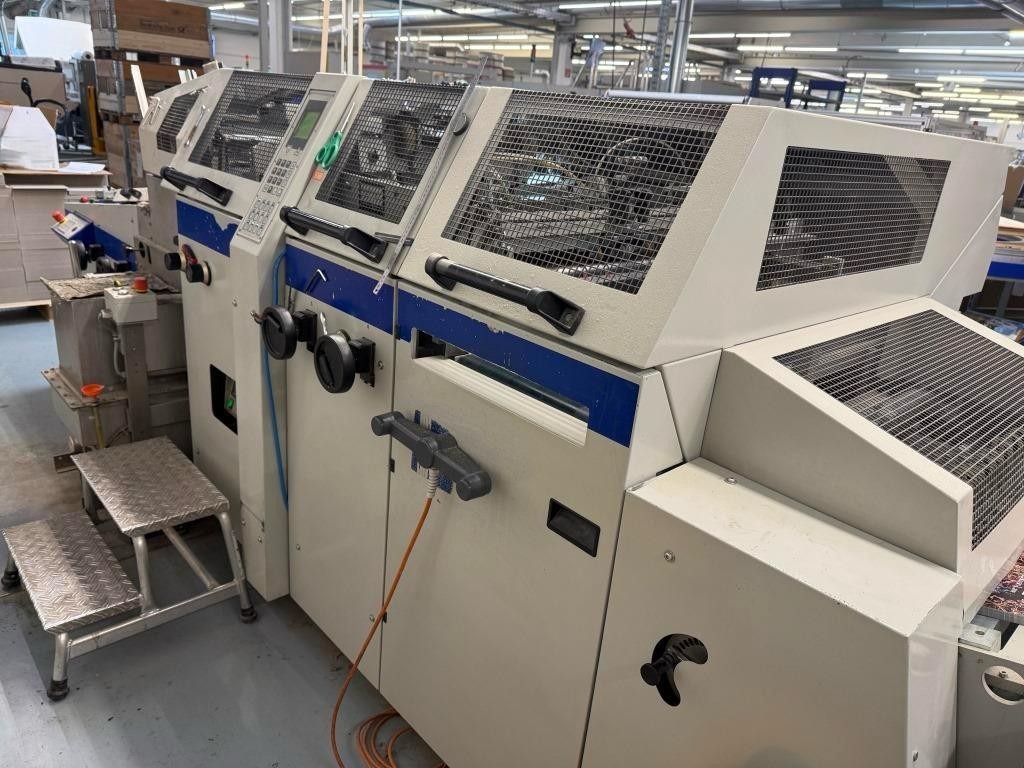

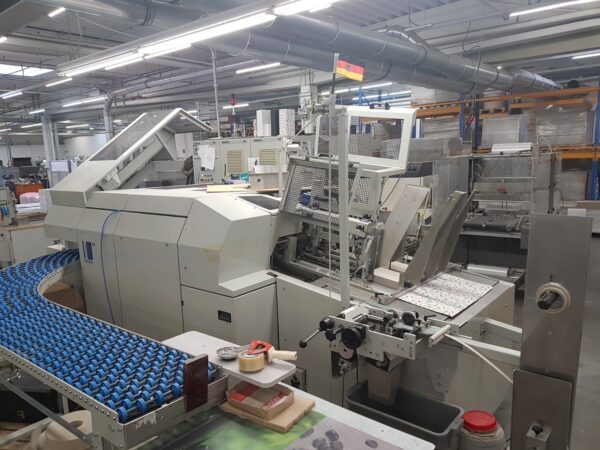

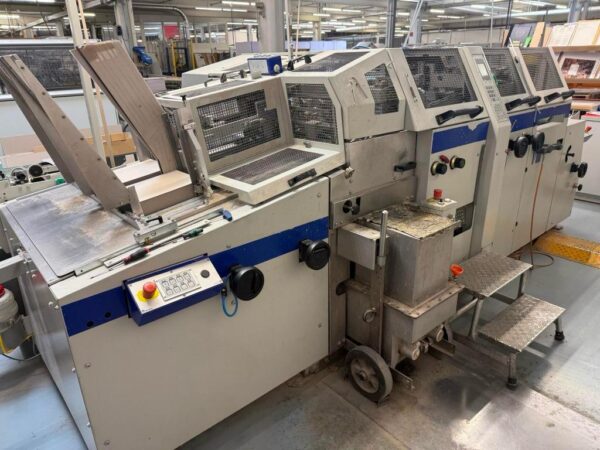

Kolbus DA 260

Standard Equipment: Copilot System With Touchscreen Monitor, Production Selection, Operator Guided Production Changeovers, Product Counter, Error Display And Operator Guided Troubleshooting. Manual Board Magazine, Blank Feeder For Intermittent Feeding With Stack Magazine, Maximum Stack Height 350 mm. Missing Blank Control During Separation, Counting Stack Delivery With Roller Conveyor And Table, Total Length Approx. 3,000 mm, Maximum Stack Height 100 mm. Extendable Glue Unit For Hot Melt Glue Processing With Glue Preparation In Premelter, Heated Glue Application Roller And Scraper Roller. Blank Cylinder With Grippers And Exchangeable Matrix Plates, External Glue Application Adjustment, Viscosity Control Unit, Rolling Device For Wrinkle Free Bonding Of Cover Material With Boards And Spine Insert. Device For Padded Cases Up To Maximum 8 mm Thickness With Padding, Compressed 4 mm. Automatic Case Counter And Single Case Request For Inspection Purposes On The Operator Side. Special Equipment: Device For Processing Roll Spine Material And Spine Waste Shredder. Format: Opened Case Maximum 670 x 390 mm, Minimum 205 x 140 mm. Fold Width 4 To 15 mm, Spine Width 14 To 120 mm, Closed Turn In Width 8 To 15 mm, Blank Width 223 To 708 mm, Blank Height 130 To 428 mm, Board Thickness 1 To 4 mm, Board Width 95 To 328 mm, Board Height 140 To 390 mm, Spine Board Thickness 1 To 4 mm, Spine Board Width 6 To 90 mm, Roll Spine Material Thickness 0.3 To 0.6 mm, Width 6 To 90 mm. Performance: Up To 40 Cycles Per Minute.
