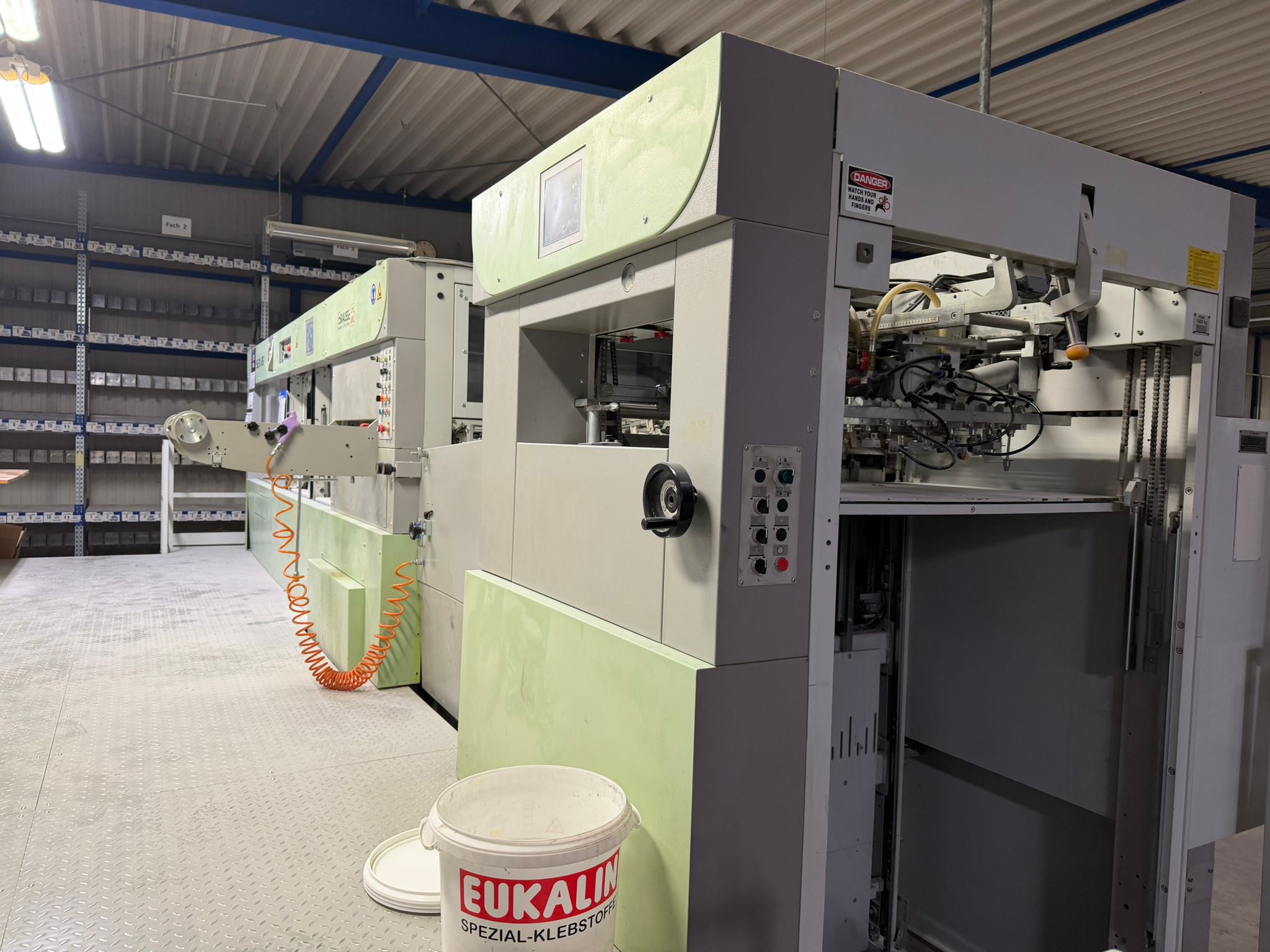

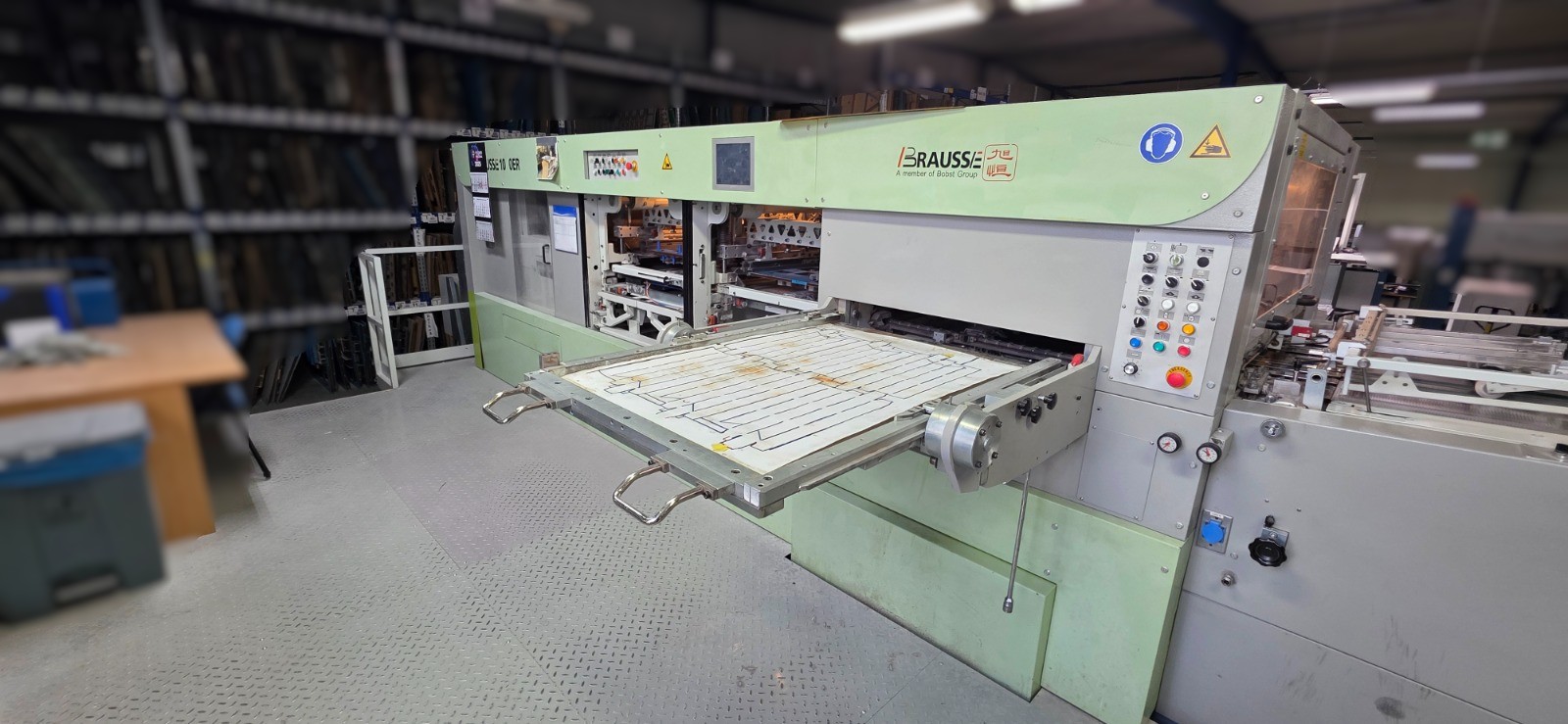

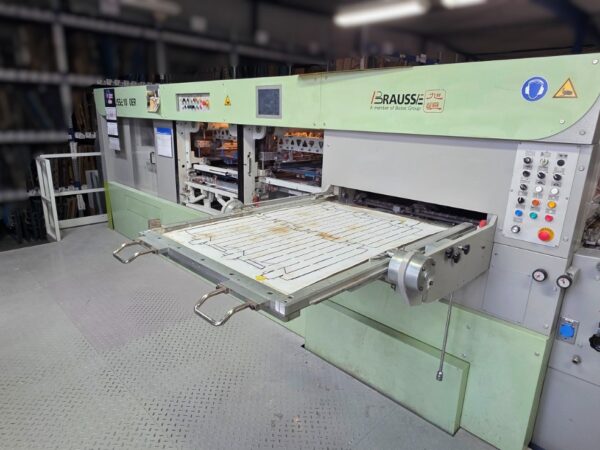

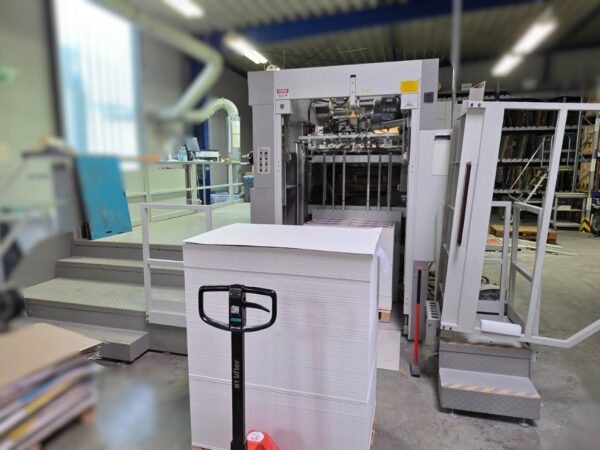

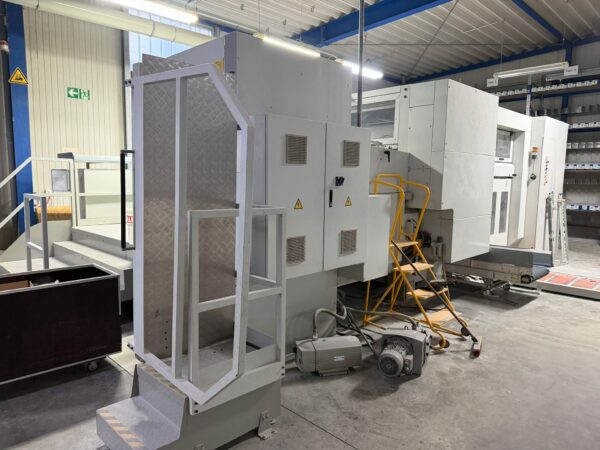

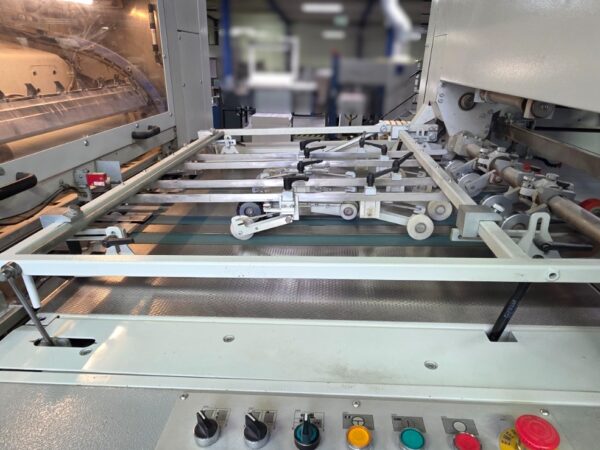

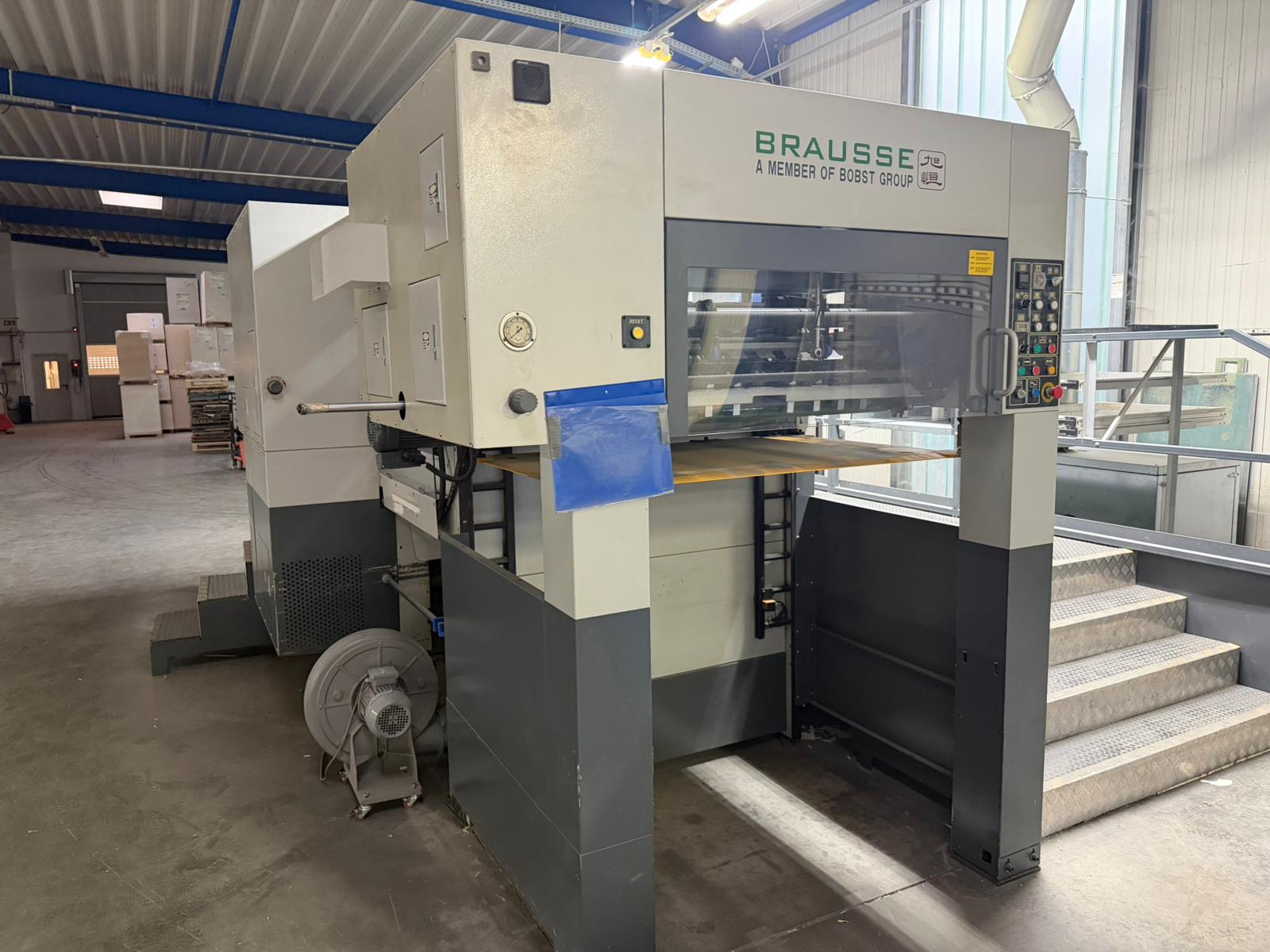

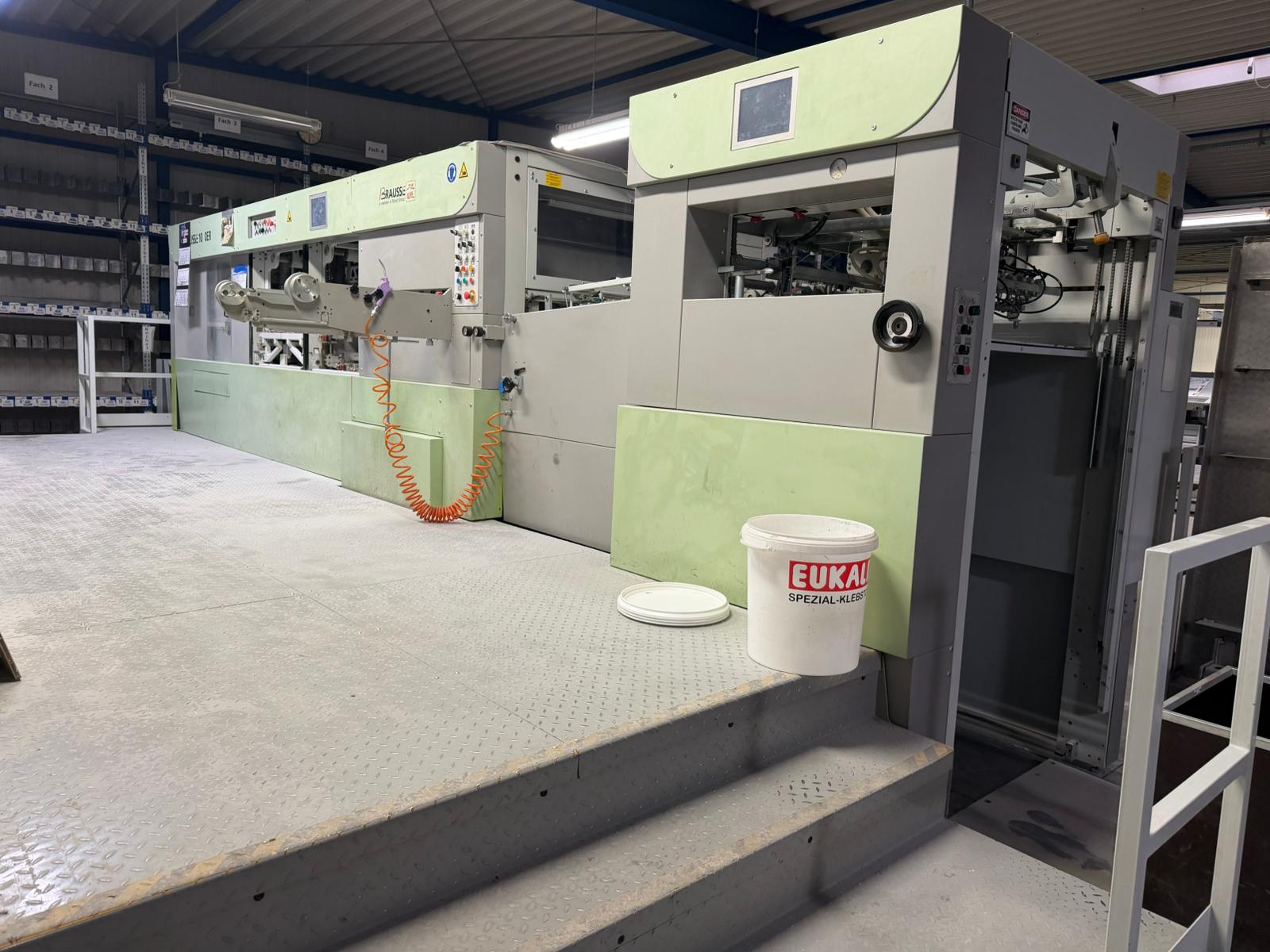

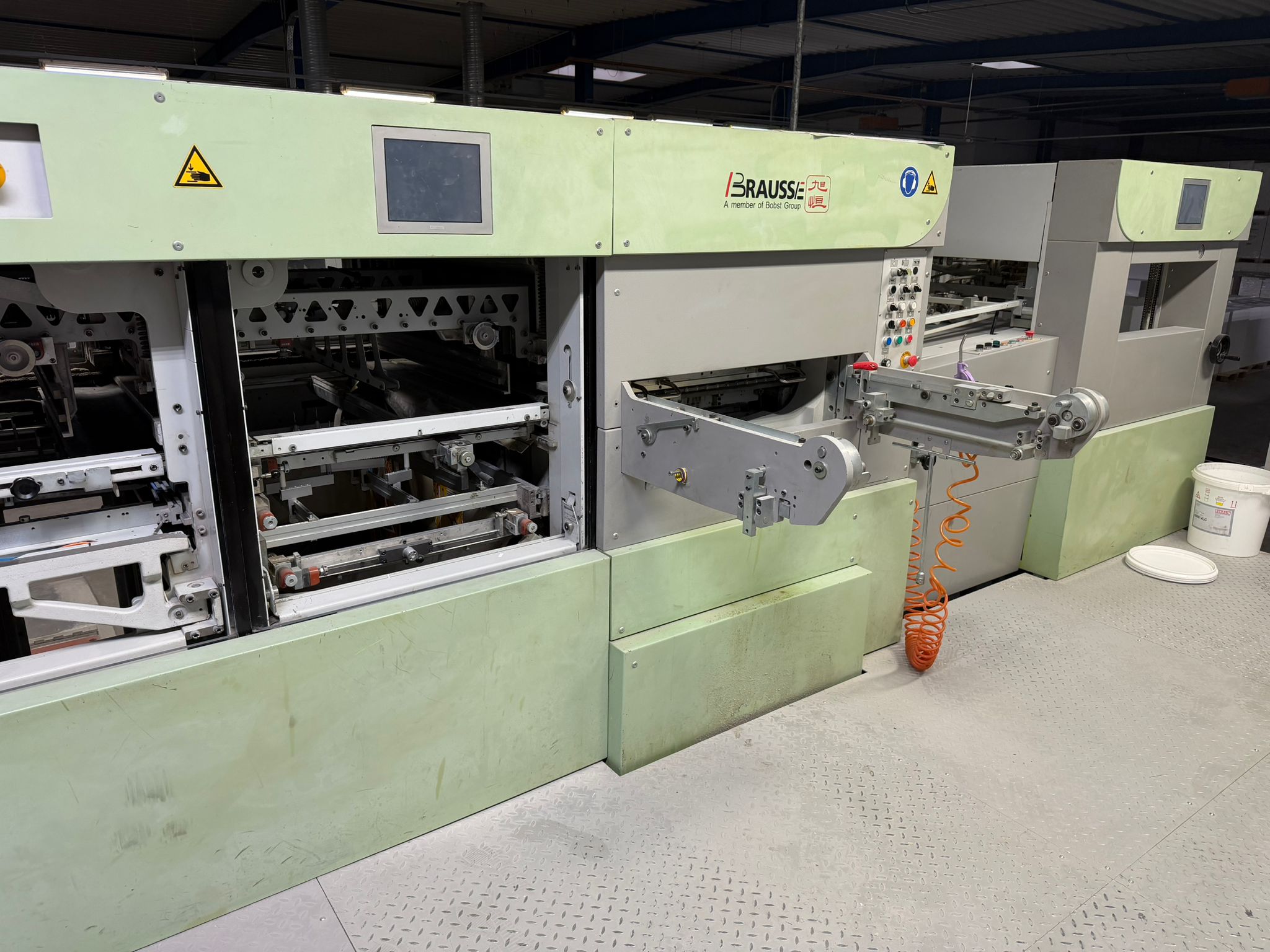

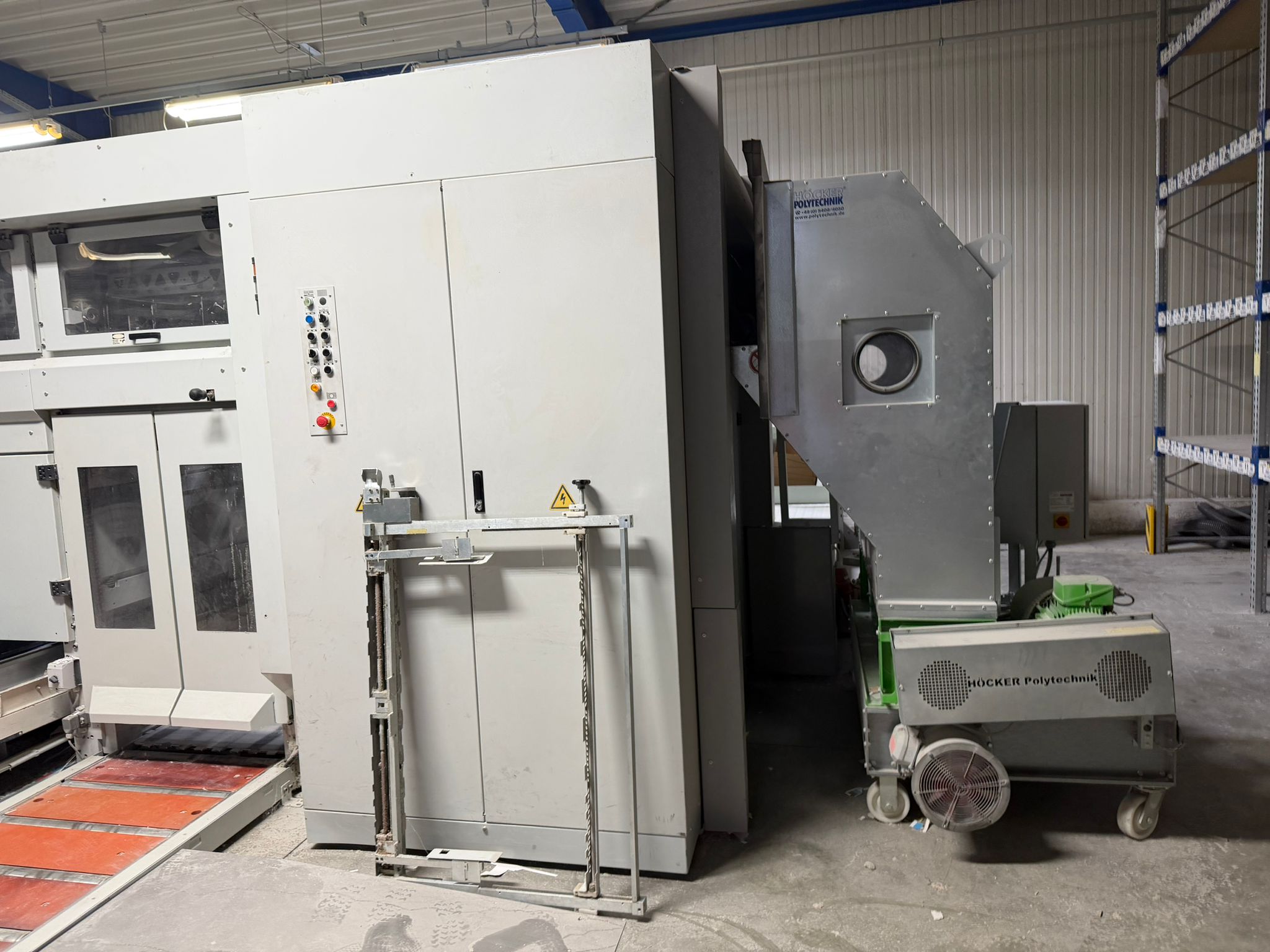

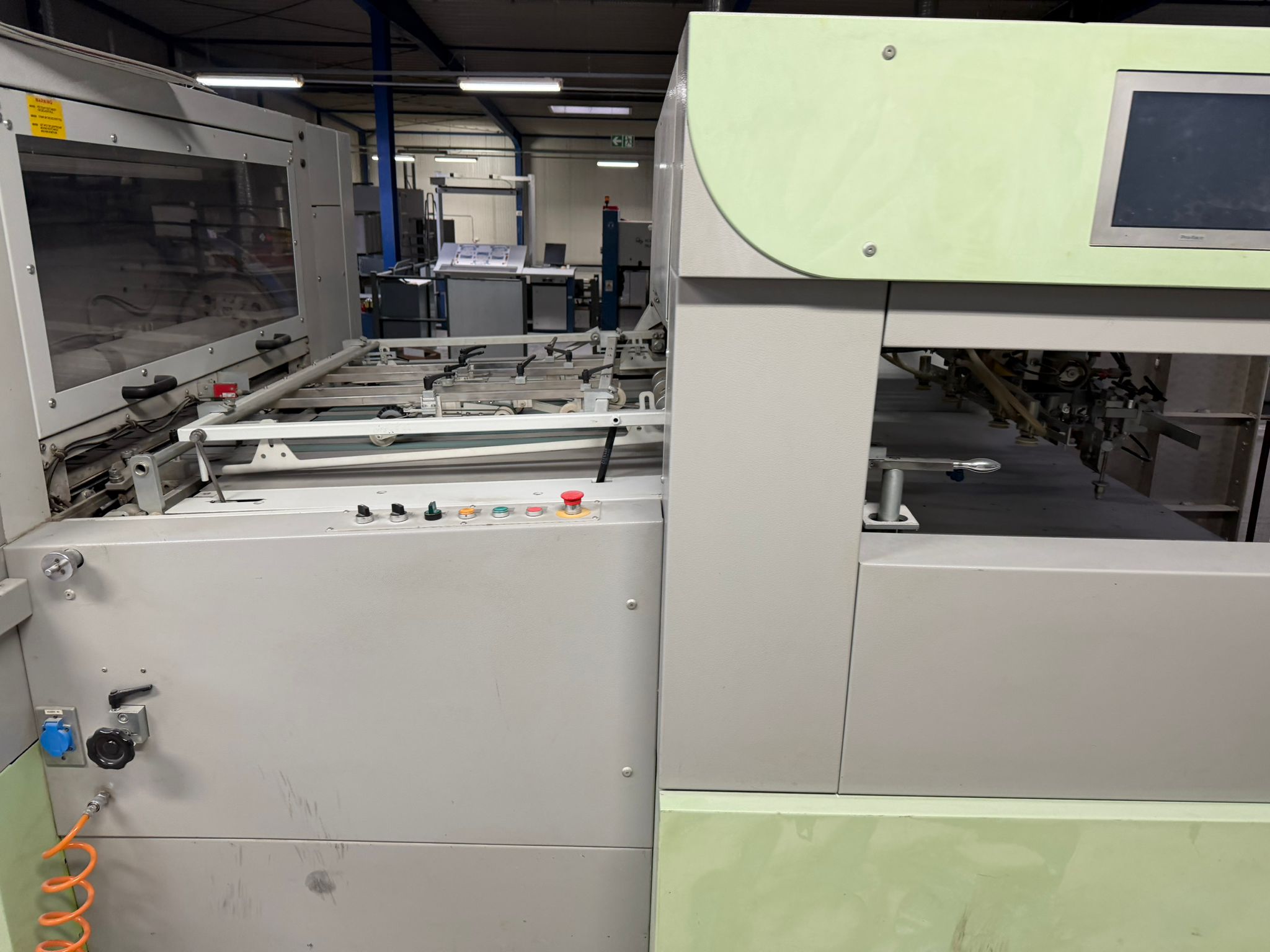

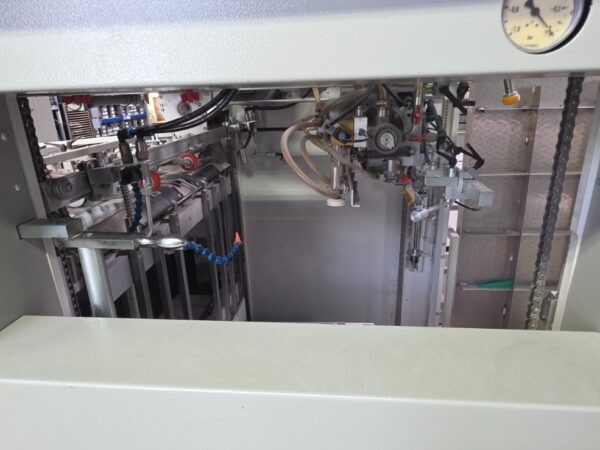

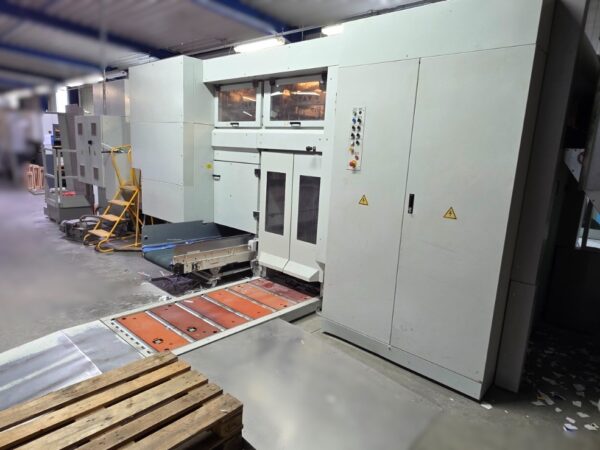

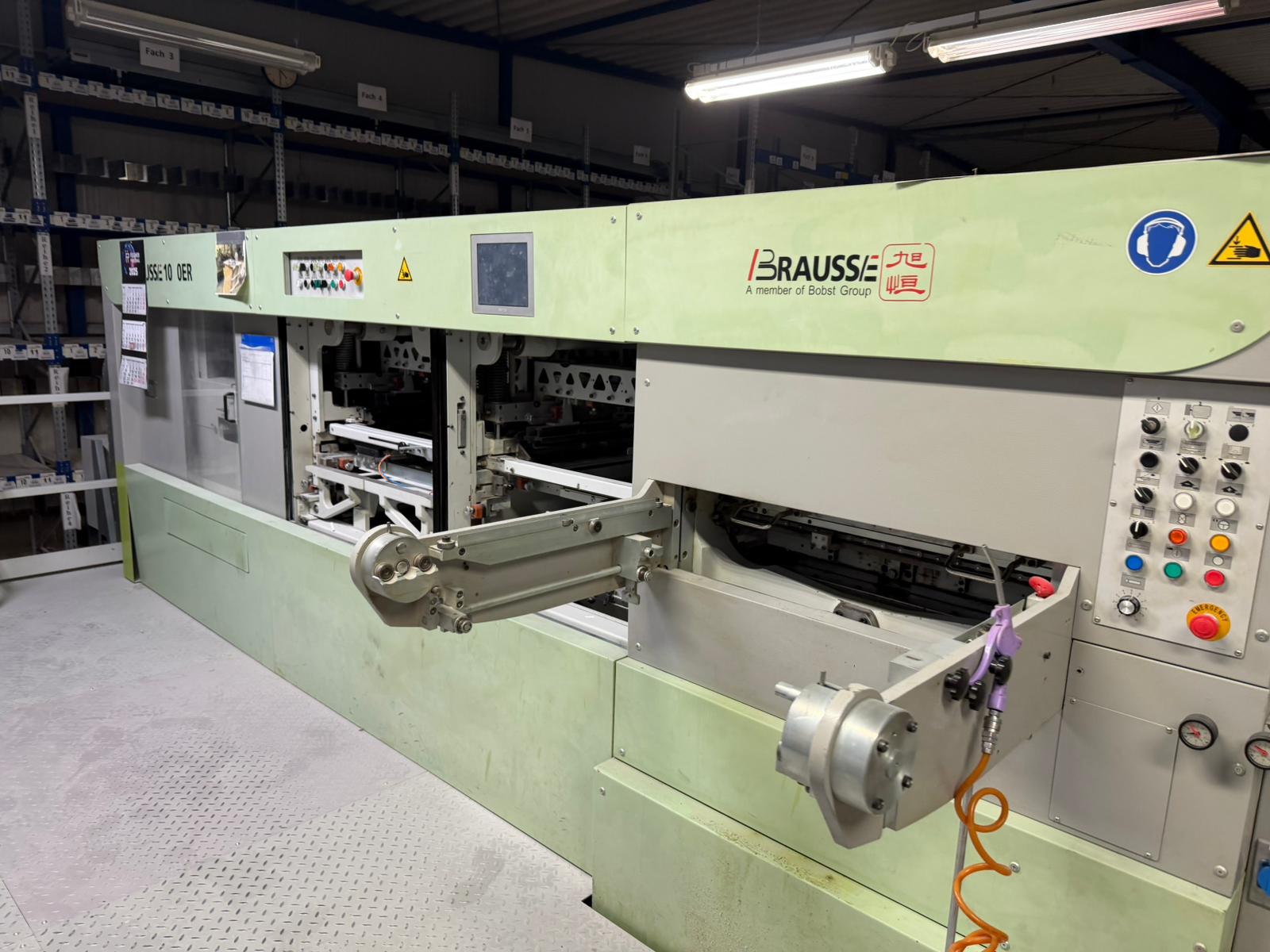

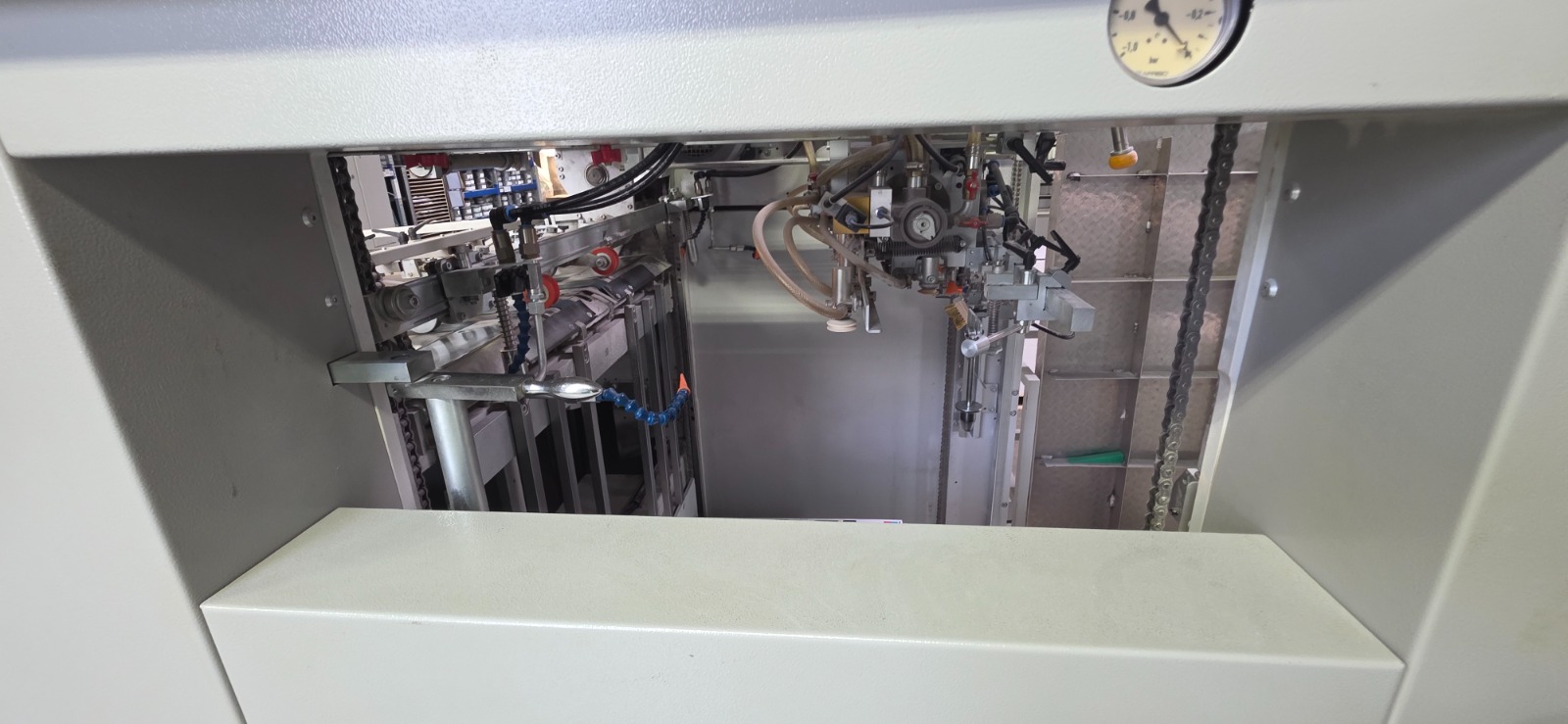

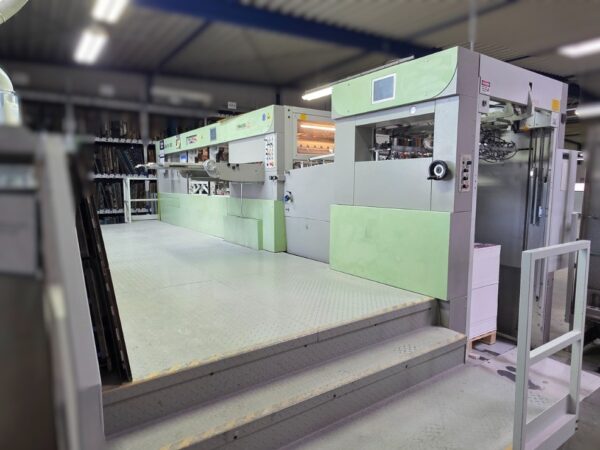

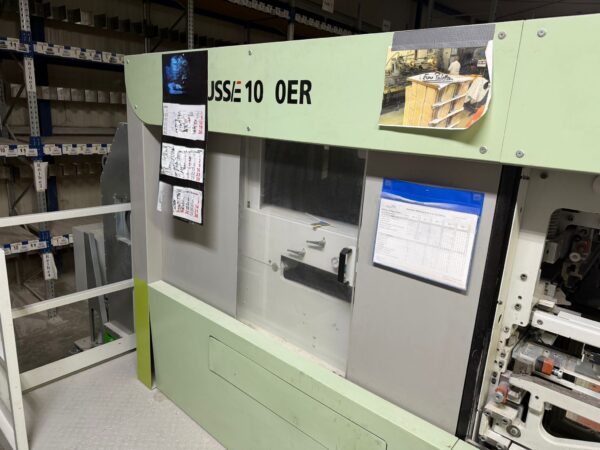

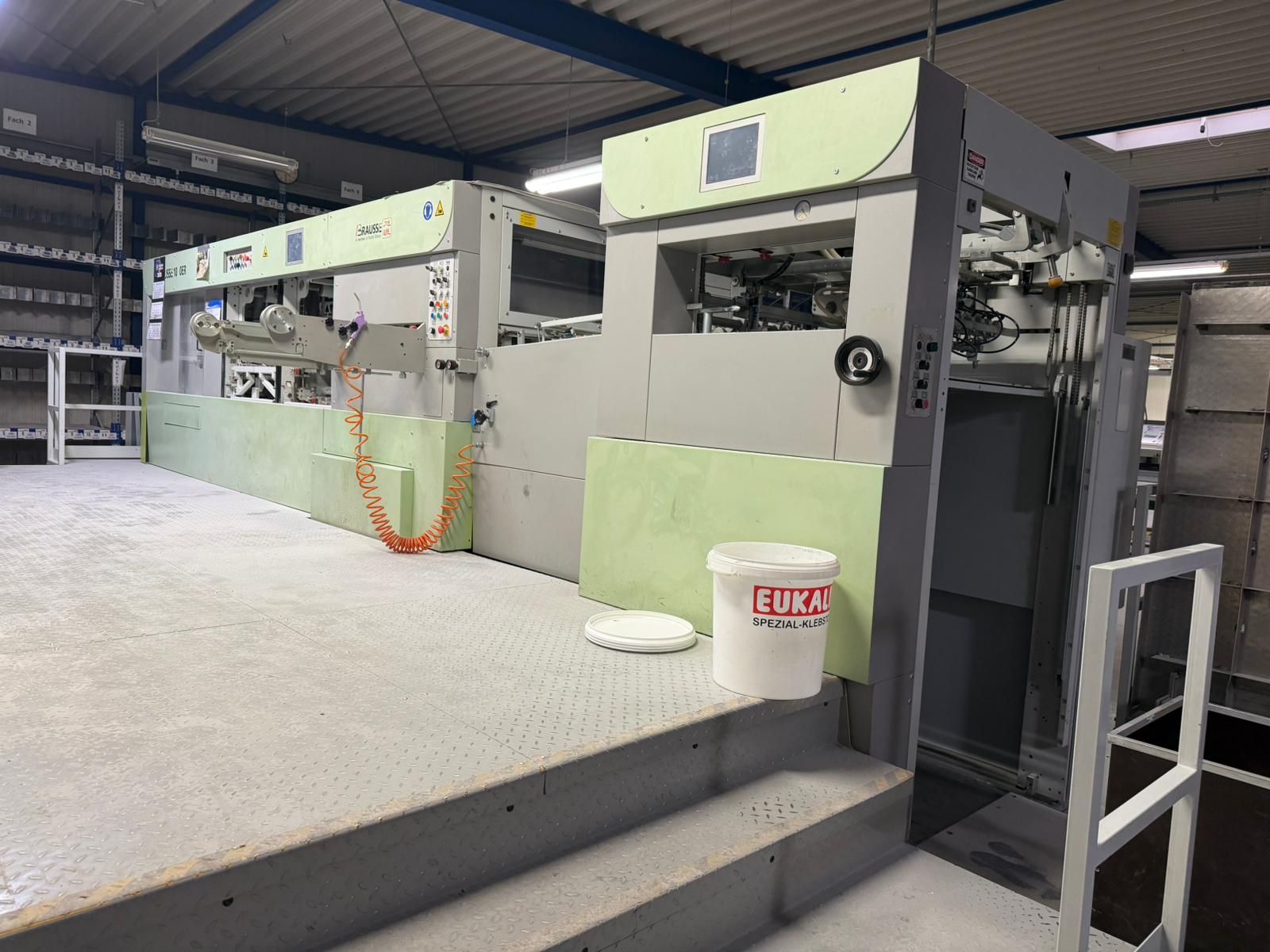

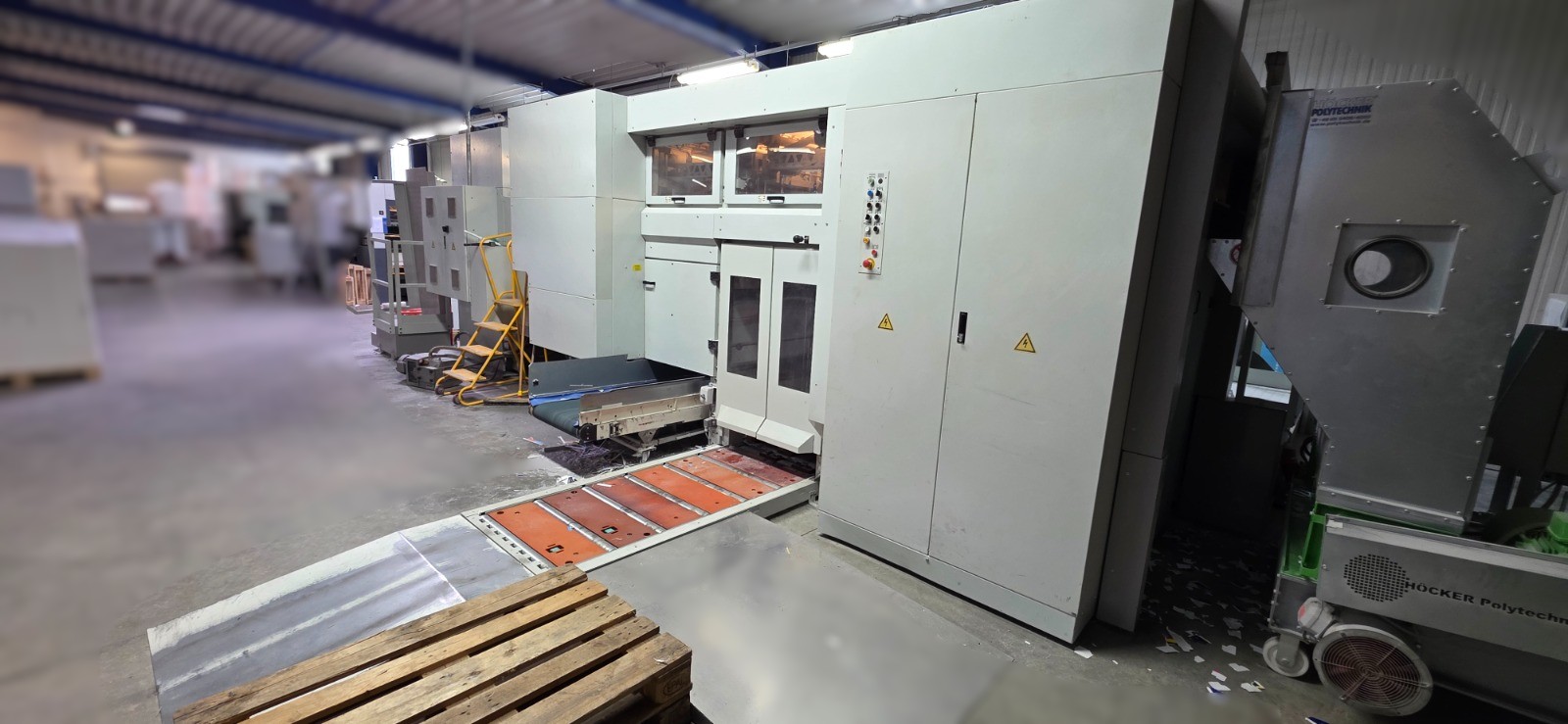

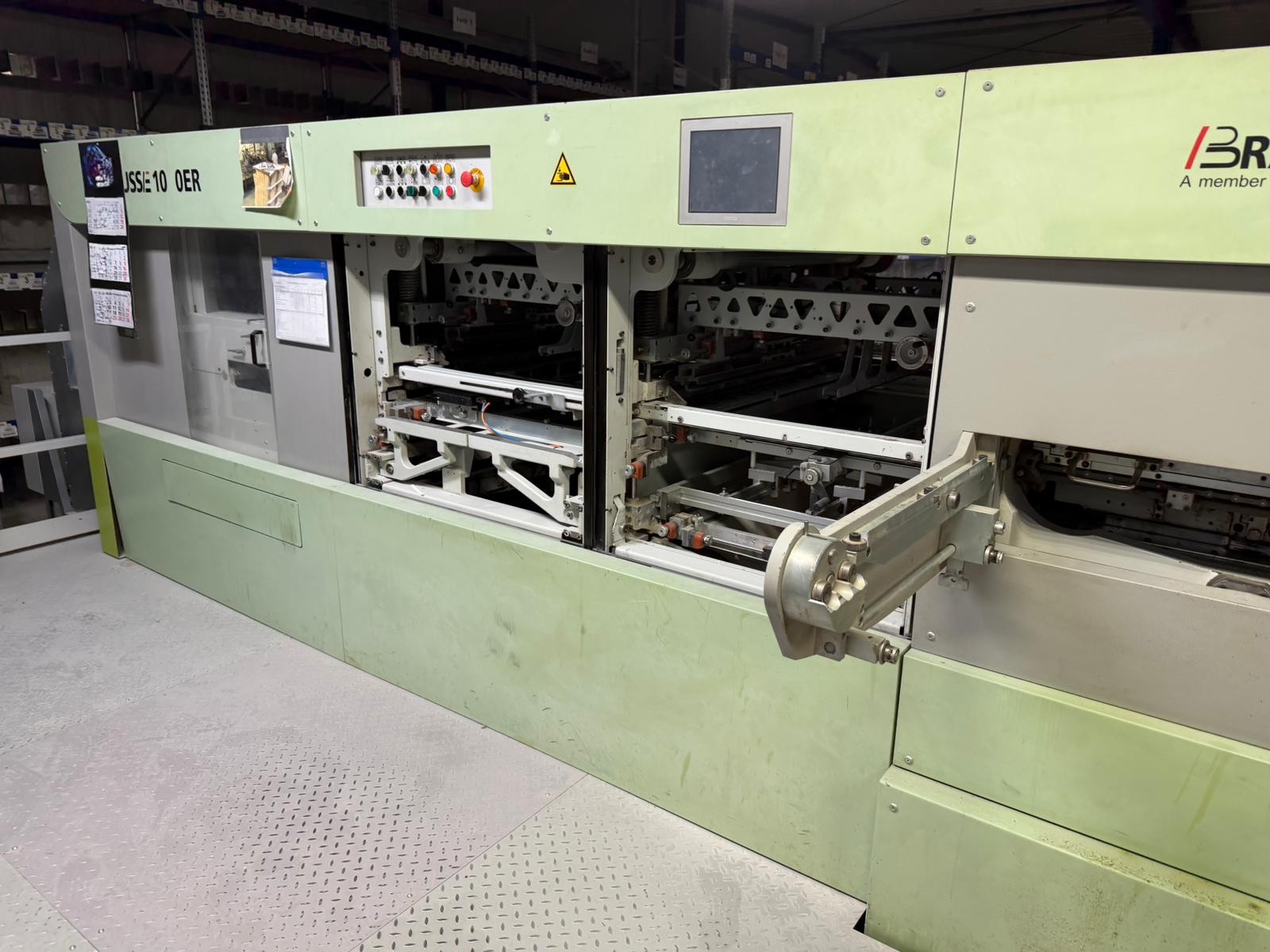

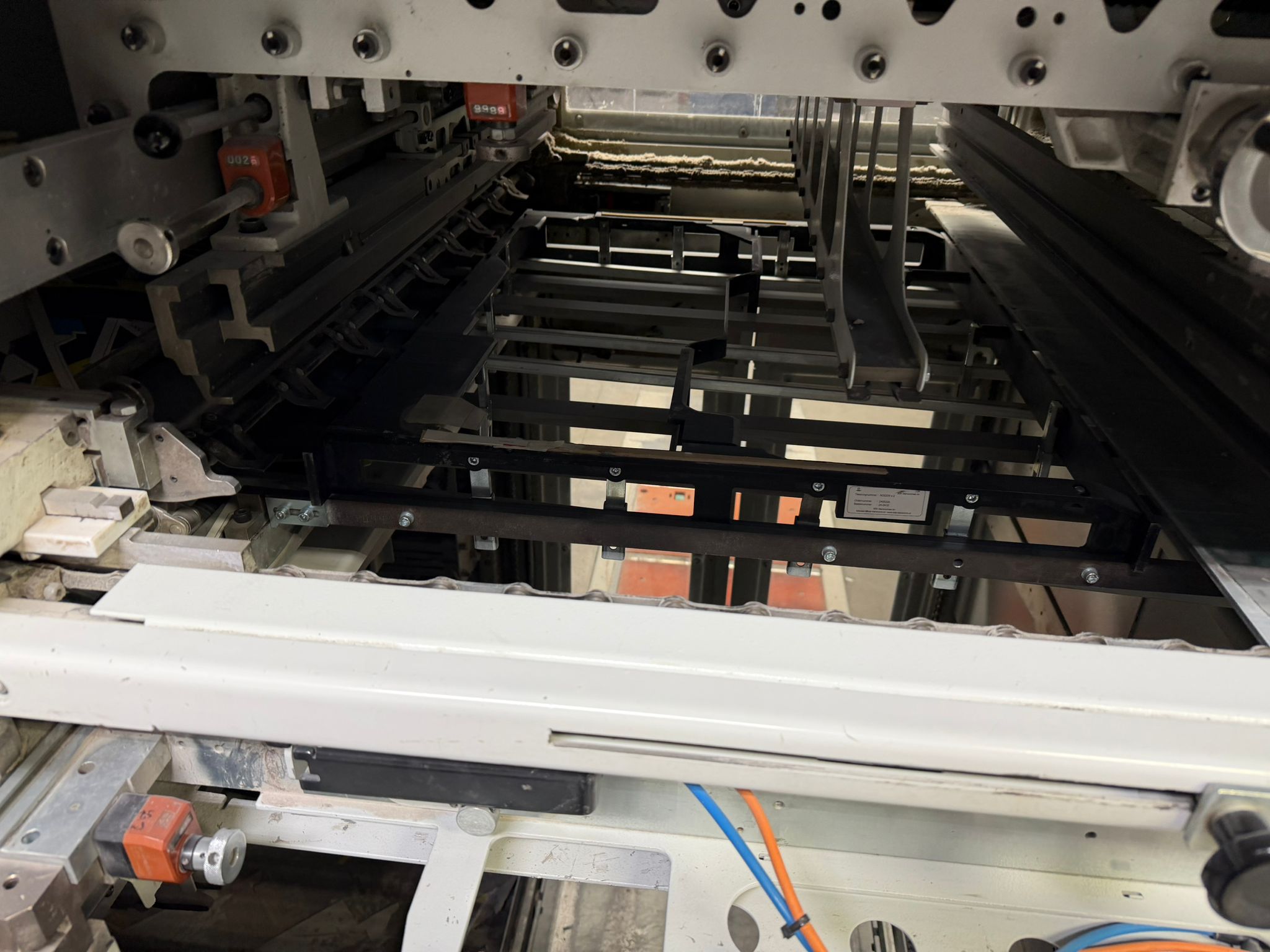

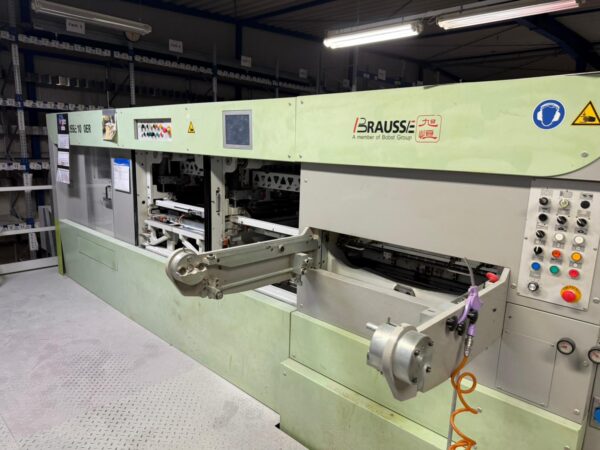

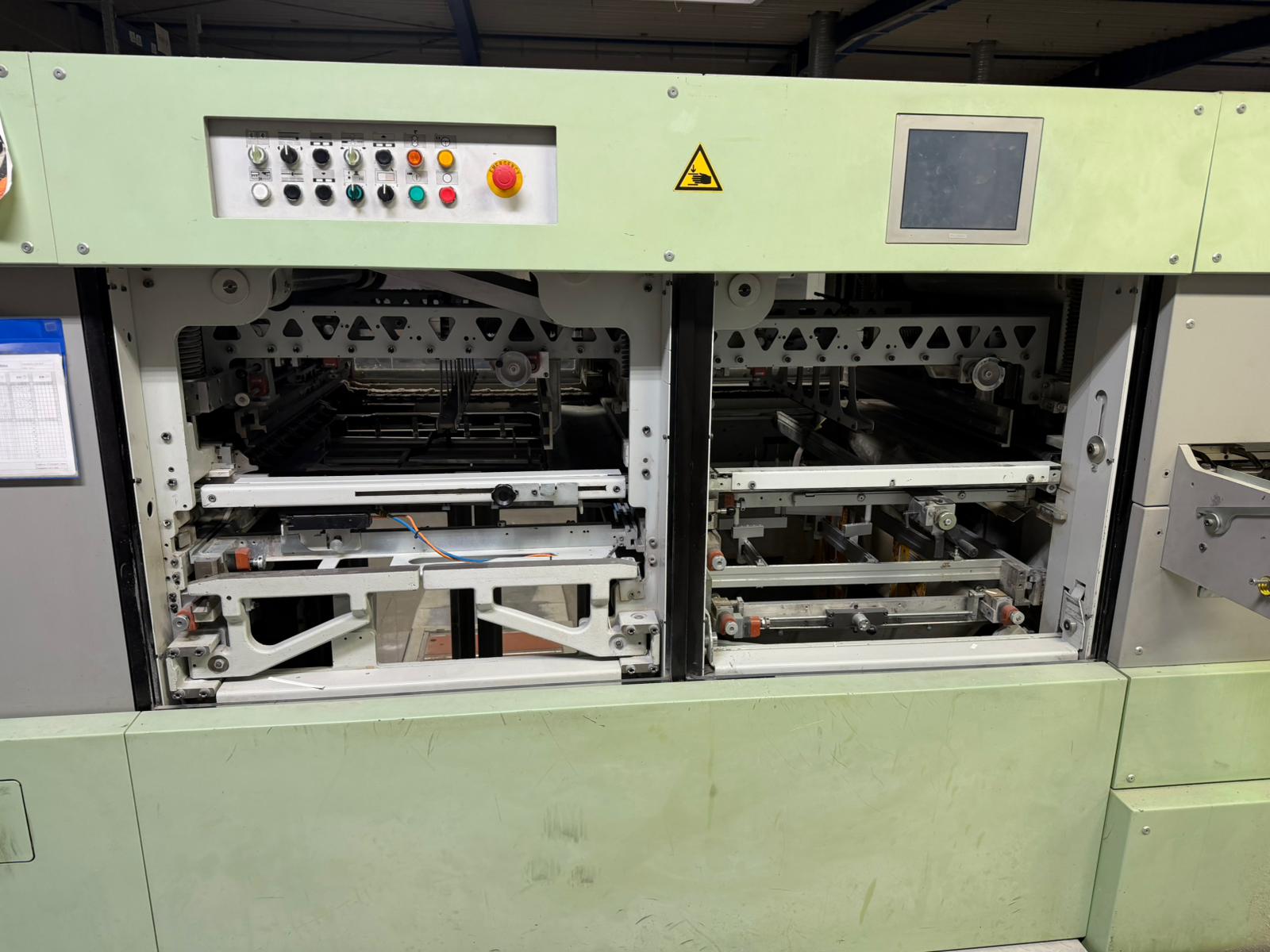

Brausse 1060 IR

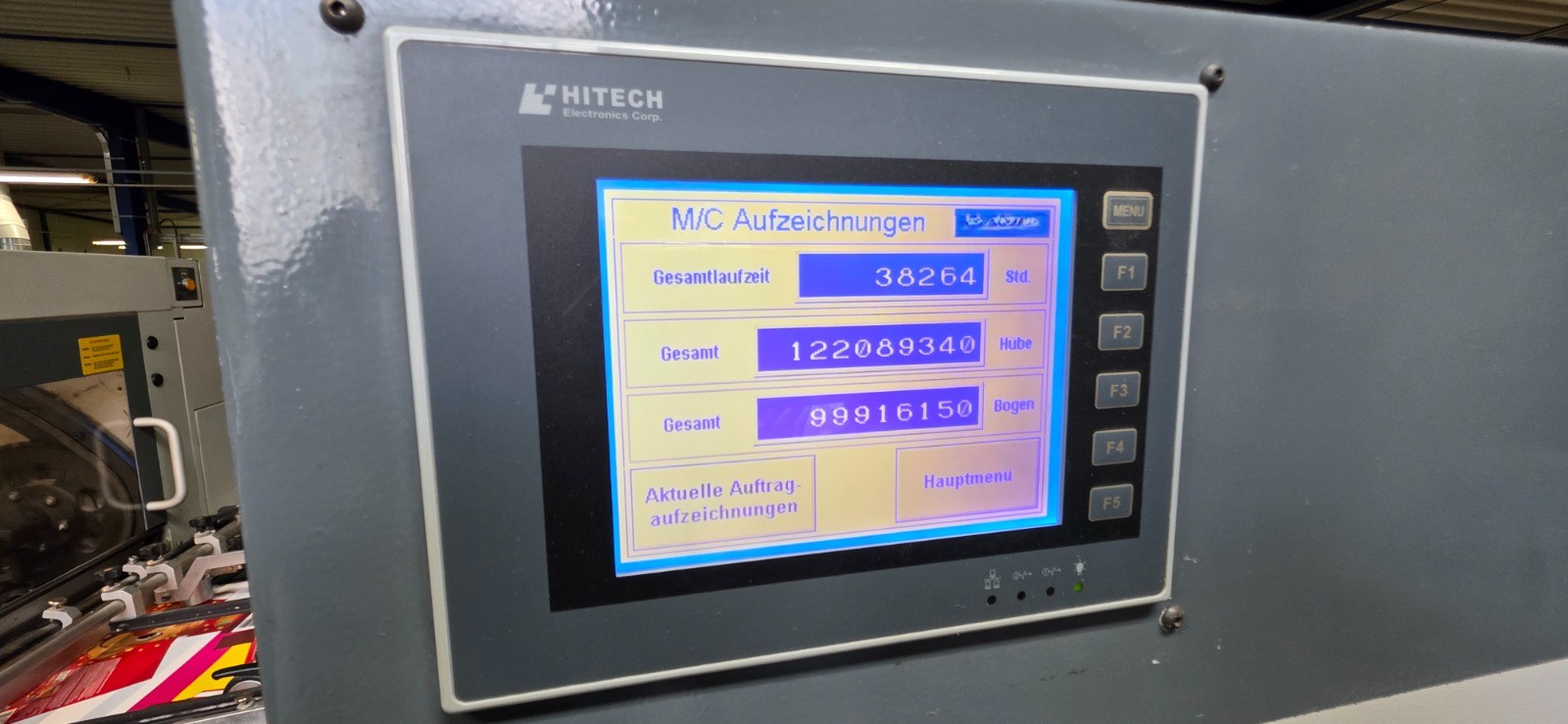

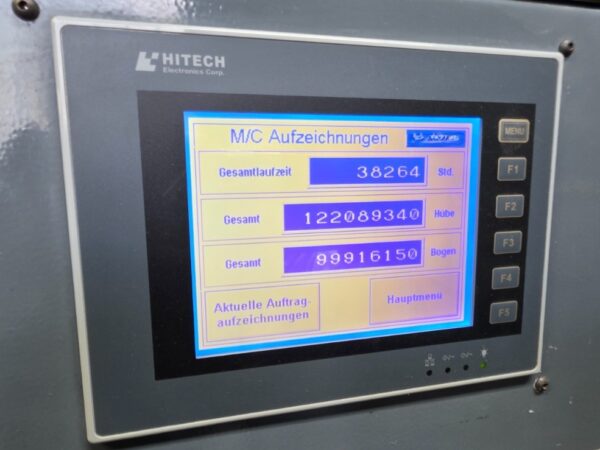

Fully Automatic High-Performance Die Cutting Machine With Integrated Stripping And Blank Separation, Designed For Industrial Folding Carton And Packaging Production. The Machine Features A Non-Stop Feeder And Delivery System For Continuous Operation And Maximum Productivity, Max. Sheet Size: 1060 × 750 Mm, Min. Sheet Size: 400 × 350 Mm, Paper From 90 G/M², Carton Up To 2000 G/M², Corrugated Board Up To 4 Mm, Max. Die Cutting Pressure: 260 Tons, Mechanical Speed: Up To 6,500 Sheets/Hour (Designed For Up To 8,000 Sheets/Hour), Quick Lock Die Frame, Quick Lock Stripping And Separation System, Ultrasonic Double Sheet Detection, Anti-Static System, Precision Gripper Transport System, Pneumatic Die Locking, Motorized Pressure Adjustment, Heavy-Duty Drive System, High-Precision Registration Control, Complete Tooling Included, Quick Change Frames, Automatic Waste Removal, Non-Stop Delivery With Automatic Pallet Changer, Mitsubishi Plc Control With Omron And Siemens Components, Touchscreen Hmi Control Panel, Full Ce Safety Certification, Power Supply: 400 V / 50 Hz, Total Power: 26 Kw, Air Requirement: 6 Bar / 600 L/Min, Dimensions: Approx. 9425 × 4530 × 2640 Mm, Net Weight: Approx. 22,000 Kg
