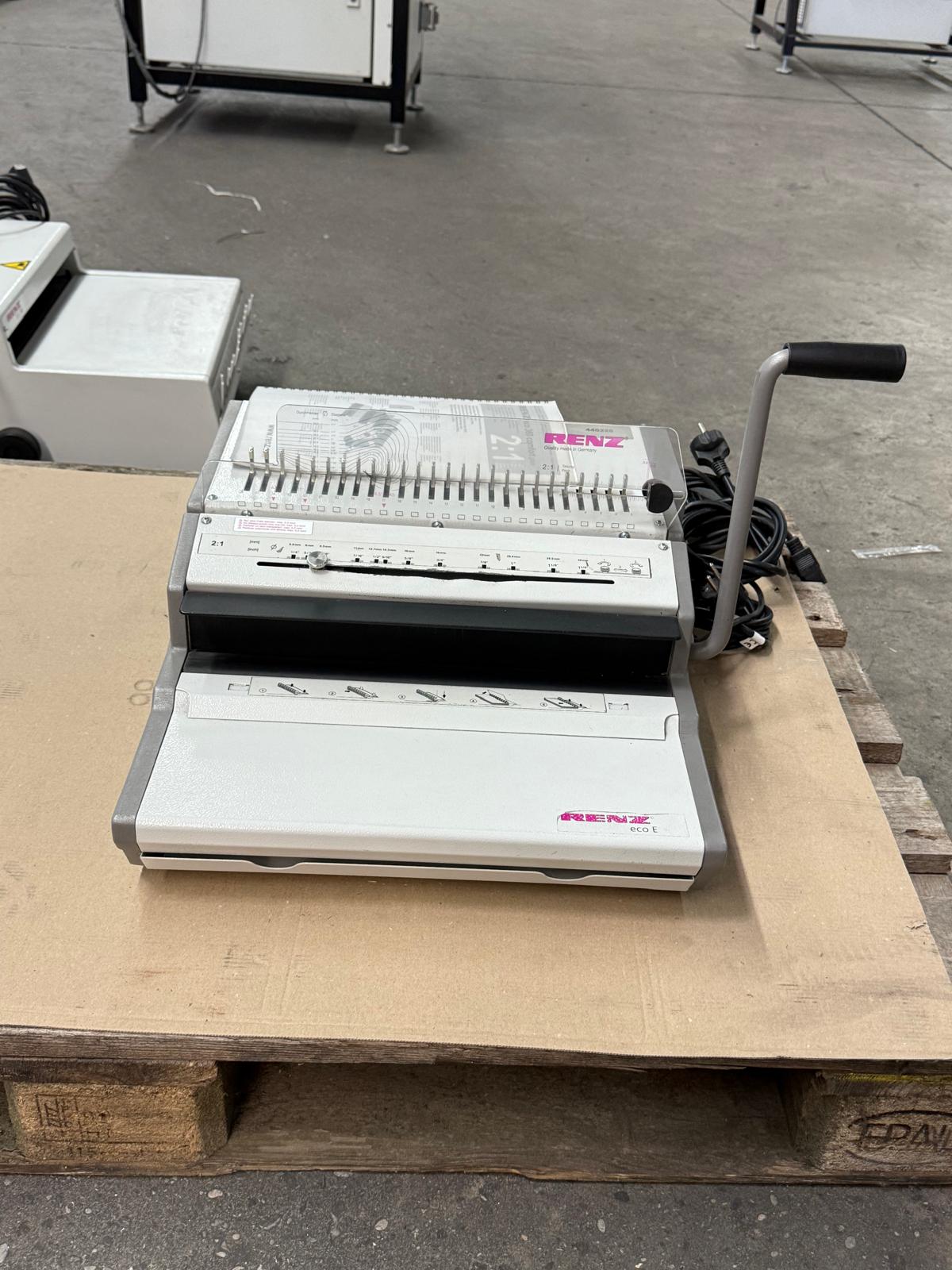

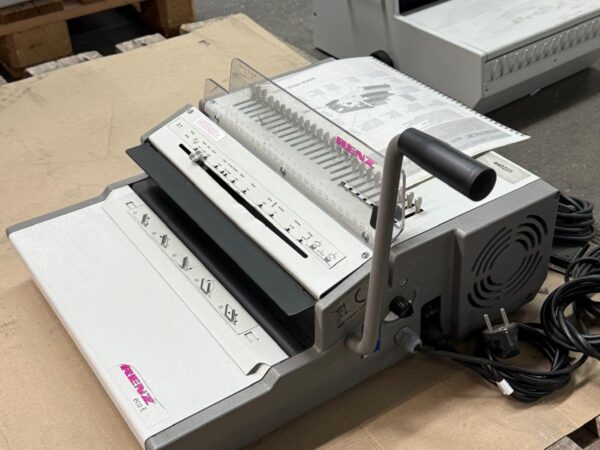

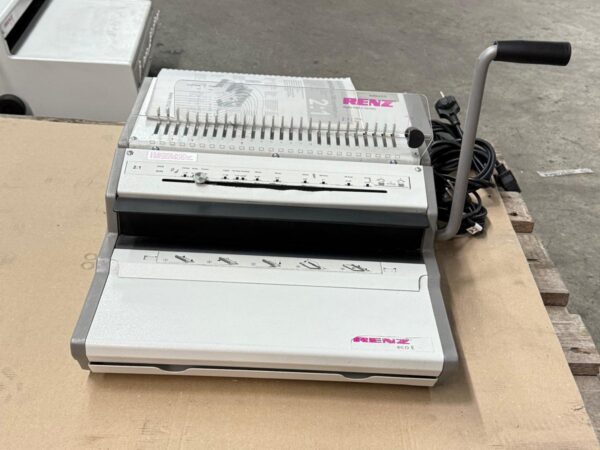

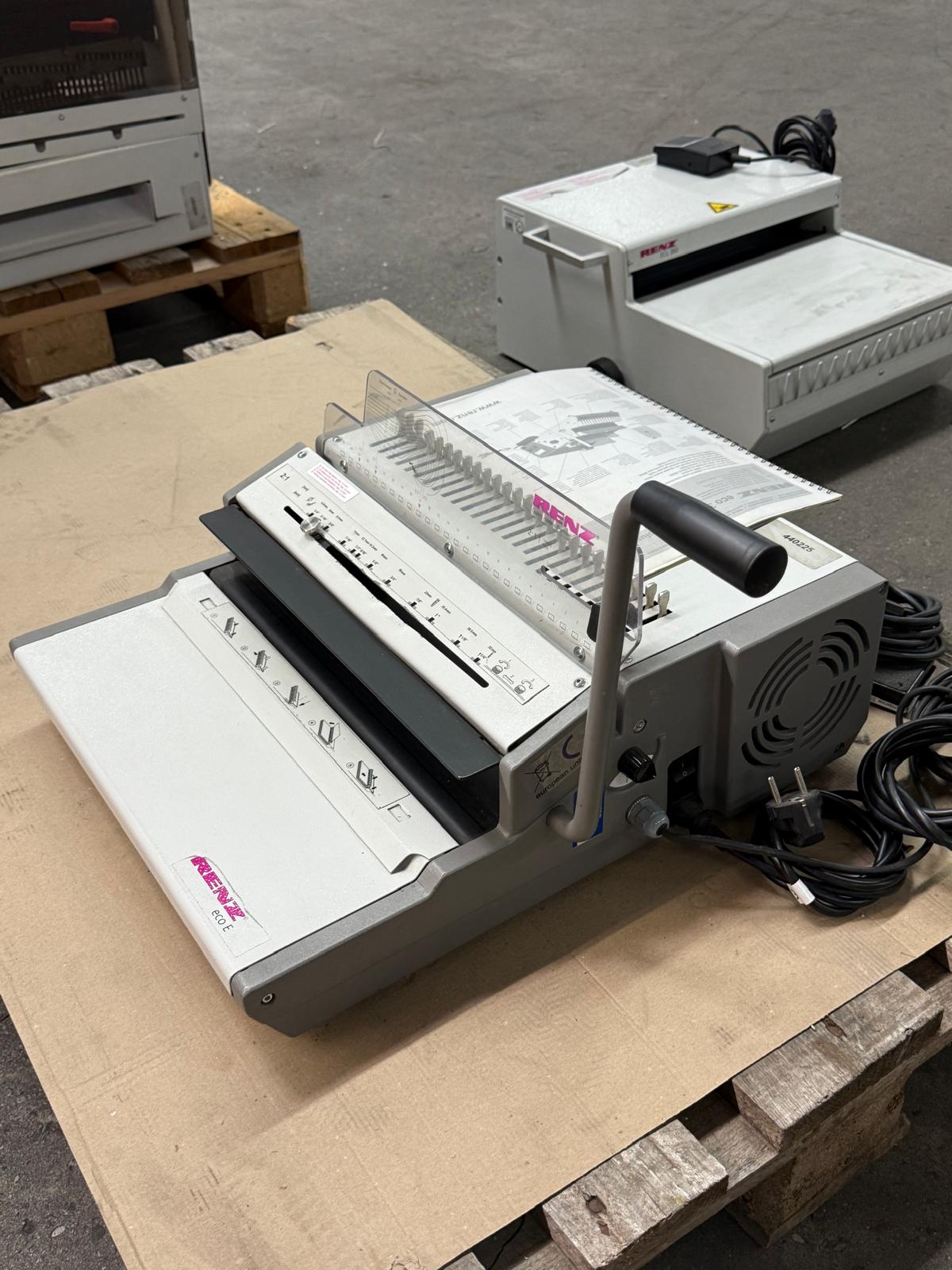

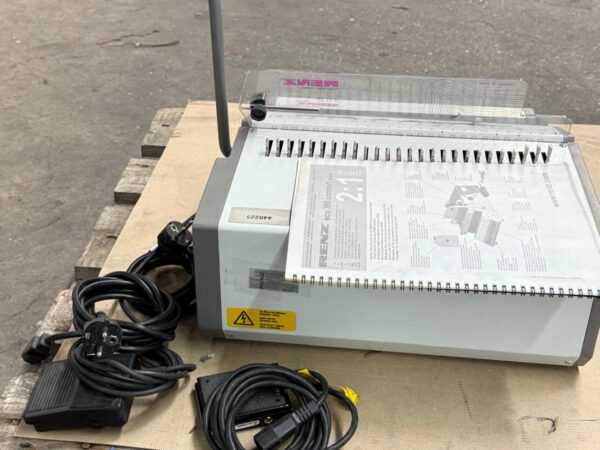

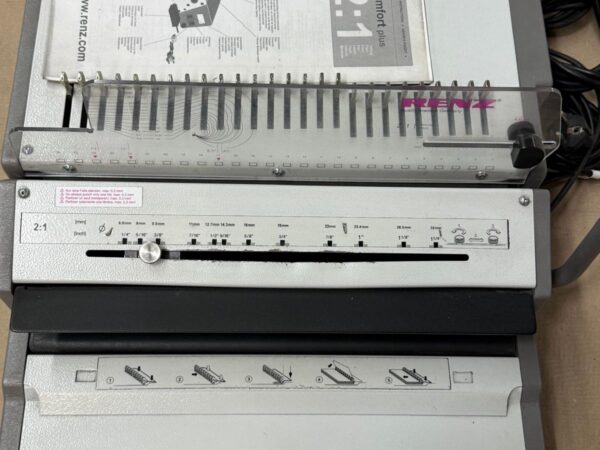

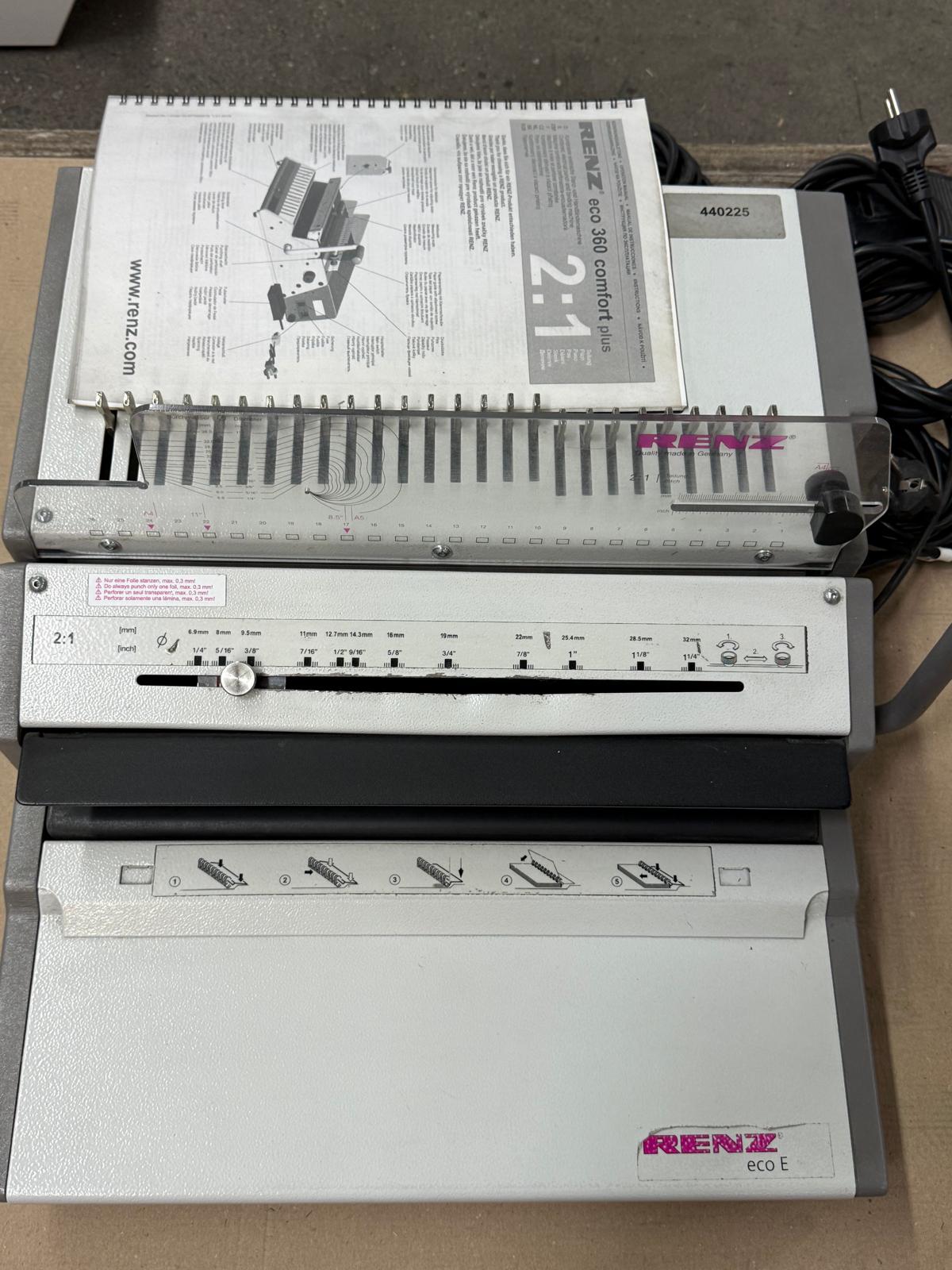

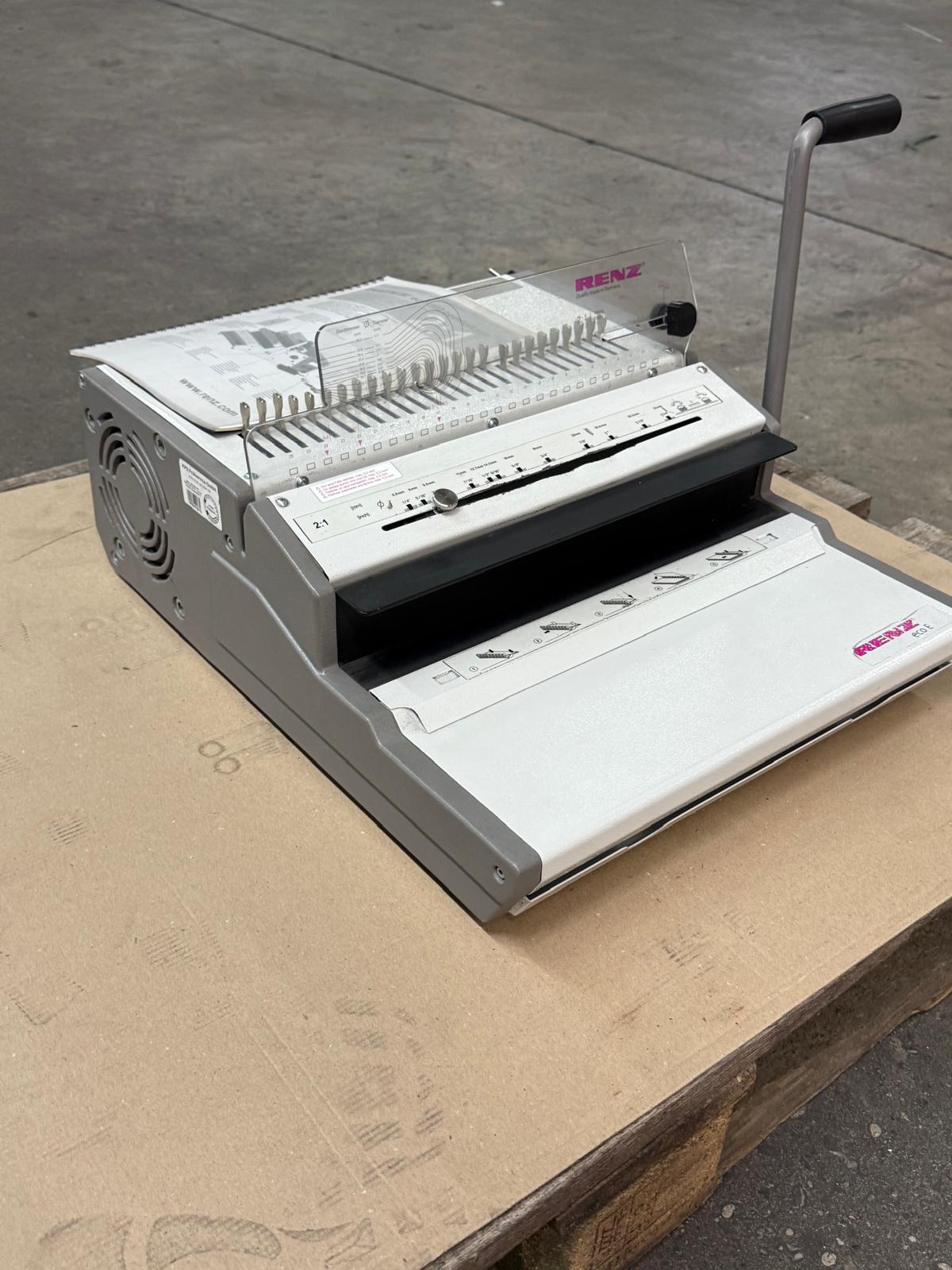

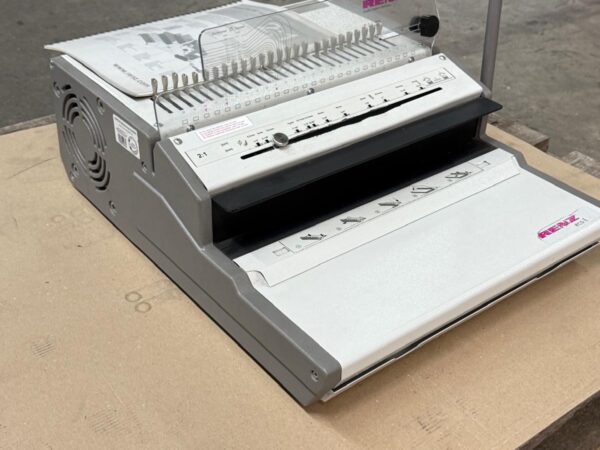

Renz Eco 360 Comfort Plus

Electric wire-comb binding with manual closing. 2:1 pitch wire comb style. Working / Maximum punching width 360 mm, Minimum punching width 10 mm, Maximum unpunched (sheet) length 500 mm, Minimum unpunched length 50 mm, Max punching thickness 2.5 mm (~ 25 sheets of 80 g/m² paper), Binding thickness / Block thickness 1 - 34 mm, Max sheets bound (80 gsm) 340 sheets, Wire diameter / binding element size 6.9 - 38.0 mm, Pitch & Hole size 2:1 pitch; hole pattern rectangular (5.5 × 3.5 mm), Selectable / Deactivatable Punch Pins (QSA) Yes — “Quick Size Adjustment” allows individual punch pins to be deactivated to adapt formats (e.g. A5, A4). Adjustable margin depth Yes — margin / unbound edge can be adjusted between 2 mm and 4.5 mm. Power Requirements 180 W; typical supply 230/250 V 50 Hz, also alternative 115/200 V 60 Hz. Speed / Output, Punching: up to ~ 16,000 punched sheets/hour (80 g paper), Binding (books): up to ~ 250 books/hour, Calendars: up to 180 calendars/hour
